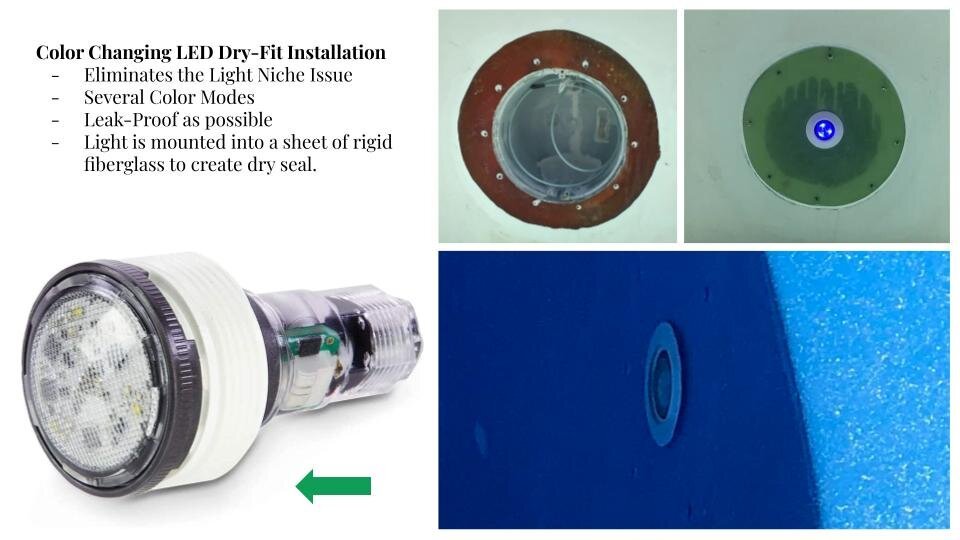

Color LED Light Dry-Fit Installation

The button below is a link to the PENTAIR MICROBRITE COLORED LED POOL LIGHT owner’s manual.

Thanks,
The Green Turtle Team



Quick Start Guide - LED Pool Light

MicroBrite Color Lights can be controlled using a standard wall-mount light switch (or by the IntelliBrite® Controller, see page 4).

Multiple MicroBrite color lights can be connected via a junction box and a 12 VAC transformer to a single switch so that all lights can be switched on and off together.

MicroBrite color lights are controlled by cycling AC power to the 12 VAC transformer from a standard wall switch.

By turning the switch on and off a specific number of times, the light activates one of the seven light show modes, fixed colors, or enables the “Hold” and “Recall” feature.

Number of times to cycle power for each program/color:

  1. SAm Mode: Cycles through white, magenta, blue and green colors (emulates the Pentair SAm color changing light).

  2. Party Mode: Rapid color changing building energy and excitement.

  3. Romance Mode: Slow color transitions creating a mesmerizing and calming effect.

  4. Caribbean Mode: Transitions between a variety of blues and greens.

  5. American Mode: Patriotic red, white and blue transition.

  6. California Sunset Mode: Dramatic transitions of orange, red and magenta tones.

  7. Royal Mode: Richer, deeper color tones.

  8. Blue: Fixed color.

  9. Green: Fixed color.

  10. Red: Fixed color.

  11. White: Fixed color.

  12. Magenta: Fixed color.

  13. Hold: Save the current color effect during a color light show.

  14. Recall: Activate the last saved color effect
